PLC Touch Screen Stainless Steel Plate Leveling Machine 1300mm For High Precision Metal Flattening

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Machine Name : 1.3m Stainless Steel Leveling Machine

Material : Stainless Steel (1–2mm, standard 2mm)

Feeding Width : 1300mm

Effective Width : 1250mm

Forming Passes : 7 upper, 6 lower

Main Shaft : 90mm solid shaft

Control System : PLC touch screen

Voltage : 380V 50Hz 3-phase

Contact Now

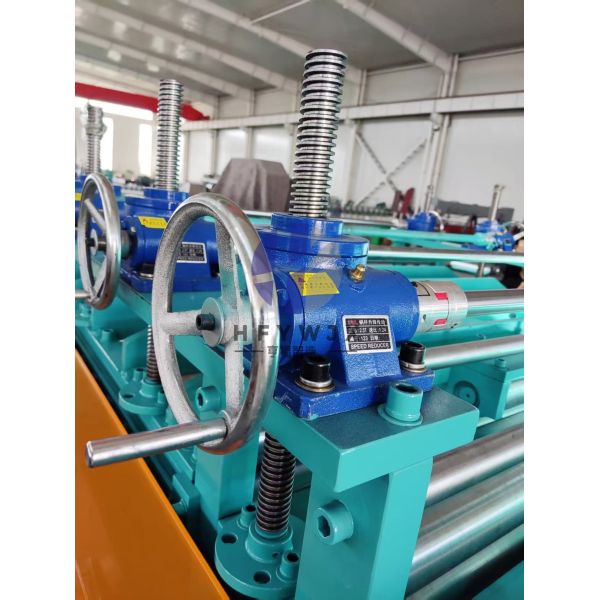

Rugged 1300mm Stainless Steel Plate Leveling Machine
Dongguang Hengfu Roll Forming Machine Co., Ltd. presents the 1.3m Stainless Steel Leveling Machine, a professional and fully automatic leveling solution built for high-precision stainless steel sheet processing. This complete production line integrates uncoiling, guided feeding, roll forming, fixed-length cutting and finished sheet output, delivering stable, efficient and high-quality performance for continuous industrial production.
Key Features
  • Heavy-duty construction with strong square tube frame and 40mm thick wall plates
  • 7 upper and 6 lower roller passes with high-strength 45Cr chrome-plated rollers
  • 90mm solid main shafts minimize vibration and ensure smooth operation
  • Gear drive system for stable power transmission and low maintenance
  • PLC touch screen control system with high-precision rotary counter
  • Electric shearing system with Cr12 quenched blades for burr-free cutting
  • Remote control included for safer and more flexible operation
Technical Specifications
Specification Details
Machine Model 1.3m Stainless Steel Leveling Machine
Applicable Material Stainless Steel
Material Thickness 1-2mm (Standard: 2mm)
Feeding Width 1300mm
Effective Forming Width 1250mm
Forming Passes 7 upper, 6 lower
Main Shaft Φ90mm solid shaft
Roller Material 45Cr, quenched, tempered, chrome-plated
Motor Power 7.5KW
Working Speed 15-25m/min
Cutting System Electric shearing, burr-free, remote control
Blade Material Cr12
Control System PLC + touch screen
Length Accuracy ±1mm
Voltage Three-phase 380V 50Hz
PLC Touch Screen Stainless Steel Plate Leveling Machine 1300mm For High Precision Metal Flattening PLC Touch Screen Stainless Steel Plate Leveling Machine 1300mm For High Precision Metal Flattening PLC Touch Screen Stainless Steel Plate Leveling Machine 1300mm For High Precision Metal Flattening PLC Touch Screen Stainless Steel Plate Leveling Machine 1300mm For High Precision Metal Flattening
Frequently Asked Questions
What types of profiles can you produce?
Trapezoidal roof panels, corrugated sheets, floor decking, C/Z-purlins, columns/beams, hoarding panels, standing seam roofing, etc. We can also customize products according to customer drawings.
Can machines be customized according to our drawings?
Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
Will the machine's precision be compromised during transport?
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
