Integrated Design Steel C And Z Purlin Machine PLC Control System Full Automatic

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Certification : CE, SGS

Customized : Customized

Condition : New

Control Type : Artificial

Automatic Grade : Automatic

Transmission Mode : 1.2-1.5-Inch Chain Drive

Cutting Material : Infinite Shear

Transport Package : Plastic Film & Steel Wire Fixed

Specification : 9300mm*1400mm*2000mm

Package Size : 930.00cm * 140.00cm * 200.00cm

930.00cm * Package Gross Weight : 6500.000kg

Contact Now

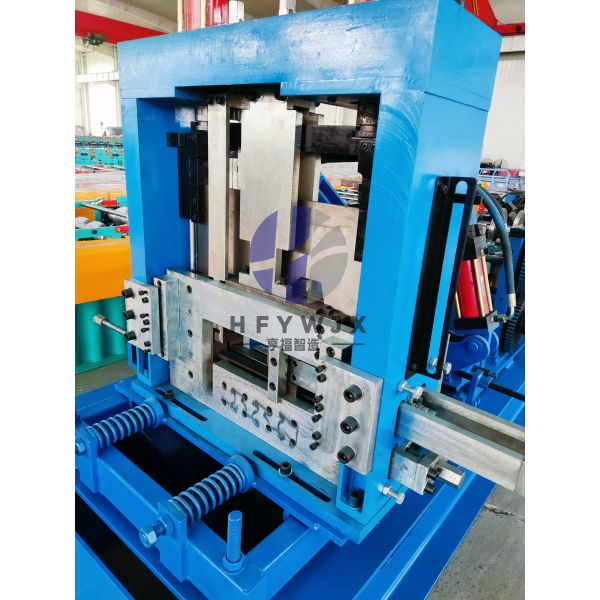

High-Speed Intelligent Integrated CZ Steel Equipment
CZ steel equipment is a cold-formed steel equipment used in the production of "C-type, Z-type" steel structures in the steel structure industry. The finished products produced by this machinery and equipment are "C/Z-shaped steel (purlins)", which are mostly used for supporting the beams and wall beams of buildings, factories and workshops.
As a single roll forming unit, it can produce various specifications of CZ type purlin products, mainly consisting of passive loading, leveling device, punching device forming host, hydraulic station and computer control system for shearing after forming, and can be customized to high standards according to customer needs.
Key Features
  • Equipped with 13 sets of CZ exchange modules for easy switching
  • Manual 180-degree rotation eliminates complex disassembly and mold replacement
  • Electric button adjustment for flexible parameter changes
  • Free specification changes to meet diverse production needs
  • Easy operation reduces technical threshold and labor costs
  • Space-saving integrated design maximizes production efficiency
Production Benefits
  • Saves conversion time and reduces production waste
  • Improves production efficiency and reduces material loss
  • Convenient for processing both large and small orders
  • Handles mass production and small-batch customization
  • Shortens production preparation cycle
  • Enhances market competitiveness through cost reduction
Technical Specifications
Model NO CZ steel equipment
Condition New
Color Blue or According to Customers' request
Cutter Type Hydraulic Cutting
Control System Controlled by PLC
Transmission Method Hydraulic Pressure
Automation Full-Automatic
Type of Driven Chain Transmission
Machine Frame 500H steel and 450H rigid welding
Shaft Material 45#
Specification 9300mm*1400mm*2000mm
Type Cold Roll forming machine
Customized Customized
Warranty 1 year
Place of Origin Hebei, China
Production Capacity 400/Set
Performance Parameters
Parameter Q195, Q235, Q345
Forming speed 25/min (according to the number of holes)
Cutting method Infinite shear system
Cutting blade material Cr12MoV
Roll material GCr15
Hydraulic station Hydraulic station power 22KW
Product Gallery
Integrated Design Steel C And Z Purlin Machine PLC Control System Full Automatic Integrated Design Steel C And Z Purlin Machine PLC Control System Full Automatic Integrated Design Steel C And Z Purlin Machine PLC Control System Full Automatic Integrated Design Steel C And Z Purlin Machine PLC Control System Full Automatic
Frequently Asked Questions
How should the machine be stored when not in use for an extended period?
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
Can it be integrated into a complete color steel production line?
Yes, it can form a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
Can a laminating machine be added?
Yes, it allows for an integrated production line combining lamination and forming.
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
Integrated Design Steel C And Z Purlin Machine PLC Control System Full Automatic
