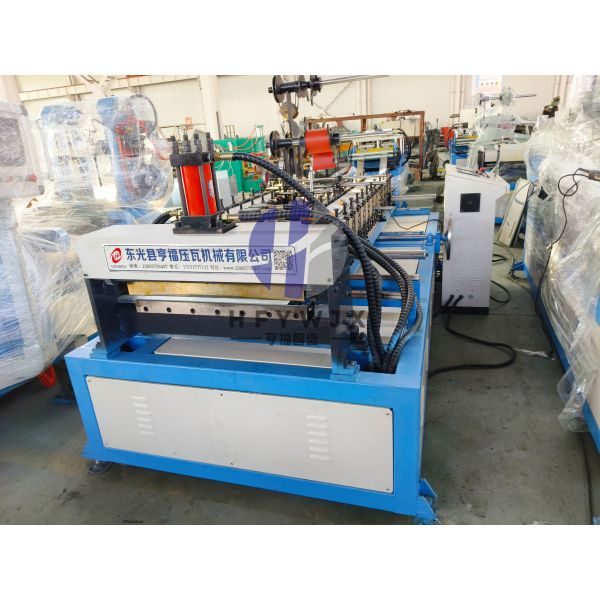

This fully automatic flexible connector production line is a high-performance equipment independently developed and produced by Dongguang Hengfu Roll Forming Machine Co., Ltd. It is specially used for processing and manufacturing various flexible connectors, widely used in ventilation, dust removal, pipeline and other supporting systems. The whole machine adopts integrated design, stable operation, high forming accuracy and strong durability, which can fully meet the mass production needs of global customers.
The machine is suitable for processing galvanized steel sheet with thickness of 0.3-0.6 mm and width of 50-105 mm, and can match fireproof fabric with width of 120-450 mm. The width of finished flexible connectors can be adjusted between 180-600 mm to meet different size requirements. The complete production process includes uncoiling, servo feeding and punching, roll forming, secondary punching, cutting and material collecting, realizing fully automatic continuous production and greatly improving production efficiency.
With 12 forming stands, the machine ensures smooth and precise profile forming. The main shaft is made of high-strength Cr40 steel with fine machining, and the rollers adopt high-grade Gcr15 bearing steel with 0.05 mm hard chrome plating, which features high wear resistance and long service life. The frame is welded by 80×80 square tubes with 14 mm thick vertical plates, providing strong rigidity and stability for long-term continuous operation.
Equipped with a 3 KW main motor and cycloidal pinwheel reducer, the machine runs stably at a speed of 6-8 m/min. It adopts PLC automatic control system to realize synchronous coordination of feeding, forming, punching and cutting. The standard voltage is 380V/50Hz/3Phase, which can be customized according to customer needs. The compact structure of about 3.5m × 2m × 1.5m saves installation space and is convenient for transportation and layout.
Backed by strong technical force and strict quality control of Dongguang Hengfu Roll Forming Machine Co., Ltd., this flexible connector roll forming machine has reliable performance and long service life. We provide customers with complete after-sales service including on-site installation, commissioning and free operation training. With high efficiency, high precision and strong adaptability, it is the ideal production equipment to improve product quality and market competitiveness.
Frequently Asked Questions
Is the electrical system susceptible to moisture damage?
The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
What's the delivery time?
Normally it takes about 45 days.
Can the machine produce curved or irregularly shaped panels?
Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.
Can the machine produce stainless steel sheets? What are the requirements for the equipment?
Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.
Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?
Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
