Stable 460 Ridge Cap Machine With PLC Control 14 Rows Forming Stations And Gear Transmission

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Model : 460 Ridge Tile Machine

Customization : Customization

Transmission Mode : Gear Transmission

Electronic Control System : PLC

External Voltage : 3-Phase 380V, 50Hz

Low-Voltage Electrical Components : Limit Switches, Contactors, Relays, etc.

Contact Now

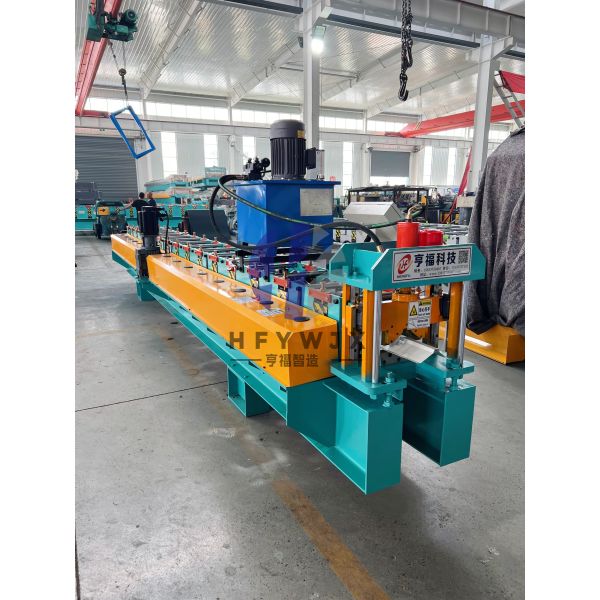

460 Ridge Cap Roll Forming Machine

The 460 Ridge Cap Roll Forming Machine offers high-speed, high-precision production for metal roofing ridge tiles. Driven by an advanced servo system, it ensures accurate forming and stable operation throughout the entire production process.

The forming rollers are manufactured from premium materials with precision machining and hard chrome treatment, ensuring excellent wear resistance and long-term performance. Combined with a hydraulic cutting system and intelligent PLC control, the machine guarantees accurate length control and smooth operation, making it ideal for continuous production.

Designed with a strong structure and reliable components, this machine delivers stable performance even in demanding production environments. It is widely used in roofing sheet production lines worldwide, helping manufacturers increase productivity, reduce costs, and maintain consistent product quality.

Technical Specifications
Component Specification
Infeed Platform Hand-cranked Feeding Stand (with Cutting Blade)
Frame Structure Welded 350H Steel; Wall-plate Type Construction
Wall Plate Thickness 14mm Carbon Steel Plate
Forming Stations 14 Rows
Main Shaft Diameter Ø70mm (Solid Shaft)
Shaft Material #45 Steel
Roller Material #45 Steel (Precision-turned, Chrome-plated, and Heat-treated)
Length Measurement Rotary Counter (with Linear Slider Bracket)
External Voltage 3-Phase 380V, 50Hz
Low-Voltage Electrical Components Limit Switches, Contactors, Relays, etc.
Product Images
Stable 460 Ridge Cap Machine With PLC Control 14 Rows Forming Stations And Gear Transmission Stable 460 Ridge Cap Machine With PLC Control 14 Rows Forming Stations And Gear Transmission Stable 460 Ridge Cap Machine With PLC Control 14 Rows Forming Stations And Gear Transmission Stable 460 Ridge Cap Machine With PLC Control 14 Rows Forming Stations And Gear Transmission
Frequently Asked Questions
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
Can the machine produce stainless steel sheets? What are the requirements for the equipment?
Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.
