High Output Precision Engineered 1000mm Trapezoidal Roof Sheet Roll Forming Machine with Energy Saving Features

Product Categories
Dongguang Hengfu Roll Forming Machine Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Output Precision Engineered 1000mm Trapezoidal Roof Sheet Roll Forming Machine with Energy Saving Features

  • 1
  • 2
  • 3

Model NO. : 1000-type trapezoidal roll forming machine

Certification : CE, SGS

Customized : Customized

Transmission Method : Electric

Transmission Mode : 1-Inch Chain Drive

Transport Package : Plastic Film & Steel Wire Fixed

Trademark : HENGFU

HS Code : 8455229090

Tile Type : Colored Steel

Condition : New

Usage : Roof

Model : 1000

Cutting Method : Guide Post 4kw Oil Pump Shearing

Specification : 6500mm*1600mm*1700mm

Origin : Dongguang, Cangzhou City, Hebei Province

Production Capacity : 500pieces/Years

Place of Origin : CHINA

Brand Name : HENGFU

MOQ : 1 Piece

Packaging Details : Plastic Film & Steel Wire Fixed

Delivery Time : 45Days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Contact Now

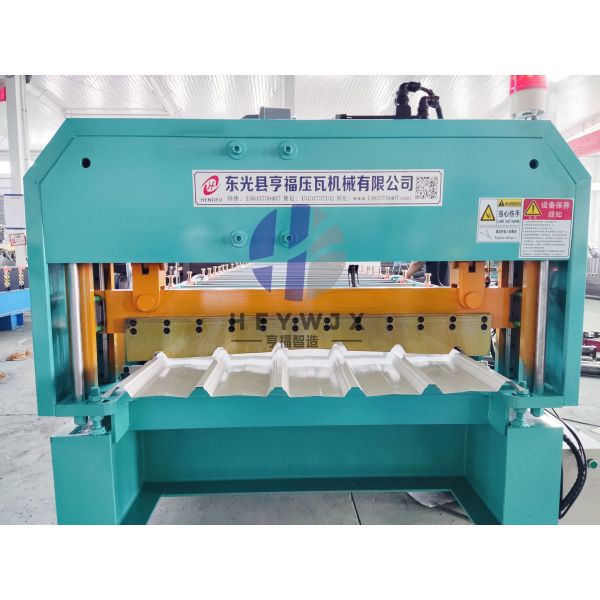

1000mm Trapezoidal Roof Sheet Roll Forming Machine
Product Overview

This High-Speed 1000mm Trapezoidal Roof Sheet Roll Forming Machine is a modern and efficient solution designed for producing high-quality trapezoidal roofing panels widely used in industrial and commercial construction. It processes galvanized, color-coated, and aluminum steel coils into well-structured roof sheets with excellent strength, weather resistance, and long-term durability, making it ideal for factories, warehouses, and large-span buildings.

The machine is built with a heavy-duty 350H steel frame and precision roll forming system, ensuring outstanding rigidity and stable operation during continuous production. Equipped with multiple forming stations and solid shafts, it delivers consistent profile accuracy and smooth surface finish.

Key Features
  • High-speed forming capability (12-15 m/min or higher)
  • Precision-engineered roll forming system
  • Integrated hydraulic cutting system for clean edges
  • PLC automatic control with user-friendly touch screen
  • Energy-saving operation
  • Reliable performance with minimal maintenance
  • Customizable trapezoidal profiles
Technical Specifications
Model NO1000
ConditionNew
UsageRoof
Feeding Width1219mm
Machine Frame350H steel frame
Forming Speed12-15 M/min
Type of DrivenChain drive
Transmission MethodElectric
Number of Rolling Mill Sets13 row molding
Spindle DiameterΦ70mm (Solid shaft)
Feeding MethodTwo-hand crank feeder (with pressure roller)
Specification6500mm x 1600mm x 1700mm
OriginCangzhou, Hebei
Warranty1 year
Product Images
High Output Precision Engineered 1000mm Trapezoidal Roof Sheet Roll Forming Machine with Energy Saving Features High Output Precision Engineered 1000mm Trapezoidal Roof Sheet Roll Forming Machine with Energy Saving Features High Output Precision Engineered 1000mm Trapezoidal Roof Sheet Roll Forming Machine with Energy Saving Features
Frequently Asked Questions
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
What is the difference between your machines and cheaper alternatives?
The machine frame is thicker and will not deform even after prolonged use. The rollers feature high precision, ensuring a standard and consistent panel profile. The cutting system is stable, guaranteeing precise length accuracy. It boasts a low failure rate and low maintenance costs. It offers a significantly longer service life.
Can it be integrated into a complete color steel production line?
Yes, it can—forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
High Output Precision Engineered 1000mm Trapezoidal Roof Sheet Roll Forming Machine with Energy Saving Features
