Trapezoidal Roof Sheet Roll Forming Machine with PLC Control System 40M/min Forming Speed and 23 Row Molding

Brand Name : HENGFU

Model Number : C21 Trapezoidal Roof Sheet Machine

MOQ : 1 Piece

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Delivery Time : 45Days

Packaging Details : Plastic Film & Steel Wire Fixed

Tile Type : Tile Type

Certification : CE, SGS

Condition : New

Customized : Customized

Usage : Roof

Transmission Method : Electric

Model : C21

Transmission Mode : 1.2inch Chain Drive

Electronic Control System : PLC

Transport Package : Plastic Film & Steel Wire Fixed

HS Code : HS Code

Production Capacity : 400sets/ Year

Package Size : 1100.00cm * 130.00cm * 140.00cm

Package Gross Weight : 6000.000kg

Place of Origin : CHINA

Contact Now

Trapezoidal Roof Sheet Machine Overview
Professional C21 model trapezoidal roof sheet forming equipment designed for efficient production of galvanized steel roofing materials with advanced PLC control system and high-speed operation.
Technical Specifications
Model NumberC21
ConditionNew
ApplicationRoof Sheet Production
Feeding Width1250mm
Machine Frame350H Steel Frame
Forming Speed0-40 M/min
Color OptionsCustomized
Drive TypeChain Drive
Transmission MethodElectric
Rolling Mill Sets23 Row Molding
Spindle DiameterΦ80mm (Solid Shaft)
CustomizationAvailable
Feeding MethodDouble Hand Rocking Feeding Rack with Pressure Roller
Machine Dimensions11000mm x 1300mm x 1400mm
OriginCangzhou, Hebei
Warranty1 Year
Key Features & Performance
  • Processes galvanized steel tile raw material with 1250mm feed width
  • Robust 350H steel frame construction for superior stability and rigidity
  • 23 rows of precision forming rolls with solid shaft design
  • High production capacity up to 40 meters per minute
  • Double linear guide type servo electric cutting system with alarm
  • Burr-free cutting technology for clean finished products
  • Advanced PLC computer control system for easy operation

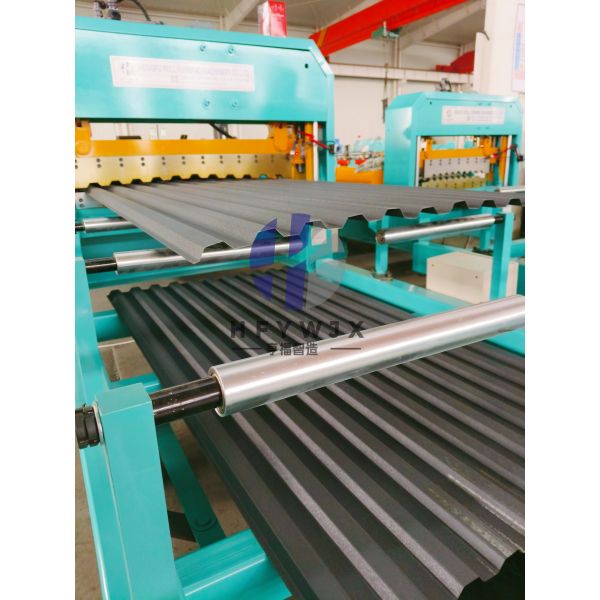

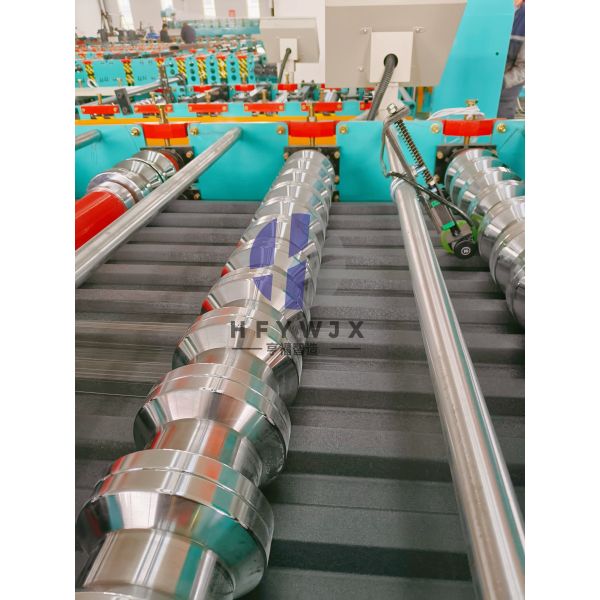

Product Images
Trapezoidal Roof Sheet Roll Forming Machine with PLC Control System 40M/min Forming Speed and 23 Row Molding Trapezoidal Roof Sheet Roll Forming Machine with PLC Control System 40M/min Forming Speed and 23 Row Molding Trapezoidal Roof Sheet Roll Forming Machine with PLC Control System 40M/min Forming Speed and 23 Row Molding
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
